Pull Out Shelving / Mould Racking System

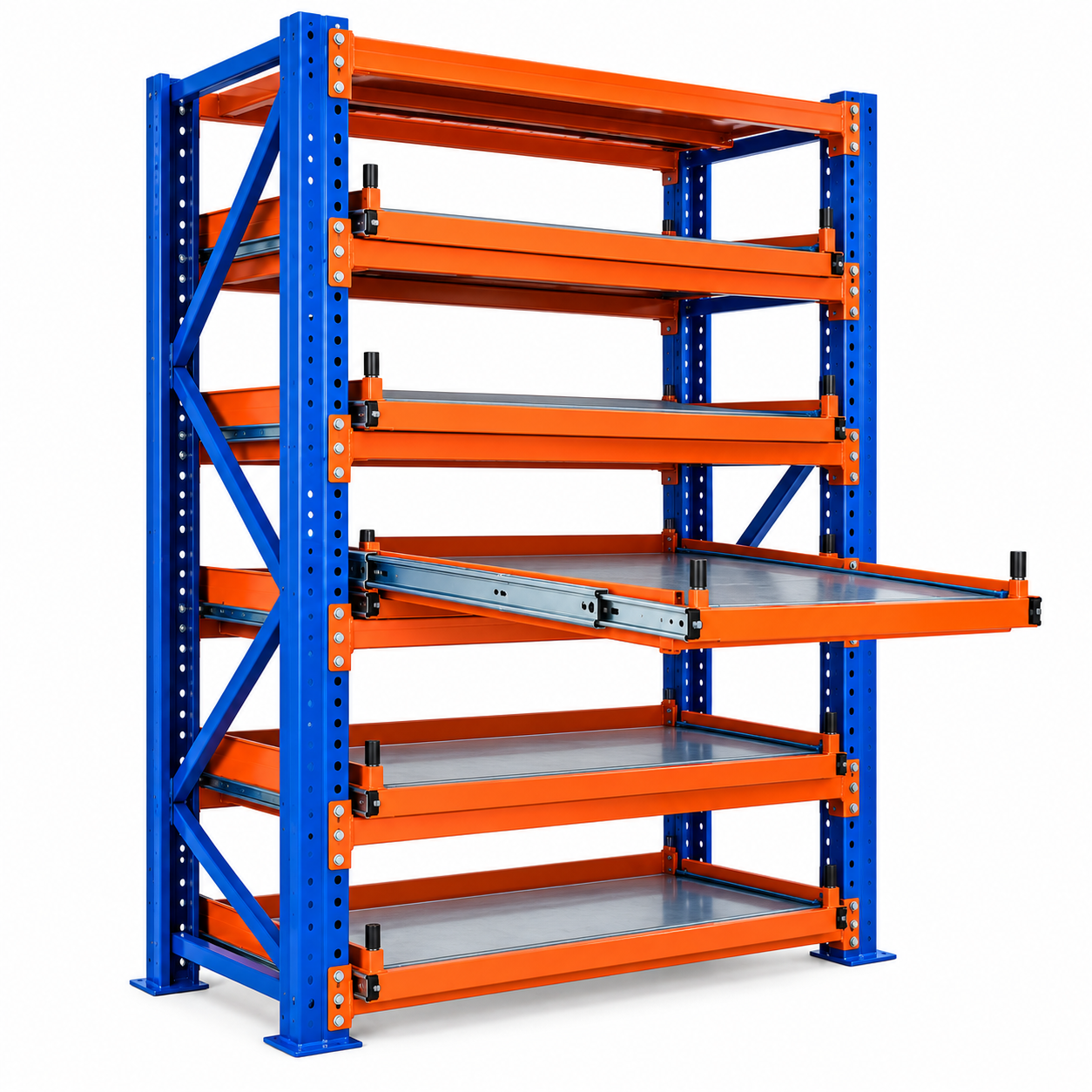

Pull-Out Shelving Racks are designed for safe, organized and space-efficient storage of moulds, dies, tools and heavy fixtures. The pull-out shelf mechanism provides easy access to stored items while reducing the need for floor stacking and manual handling.

Available in 60%, 90% and 100% opening configurations, these racks can be selected according to accessibility, load capacity and mould size requirements.

Key Benefits:

•  Easy mould accessibility with pull-out shelf design
• Safer storage compared with floor stacking
• Better utilization of available floor space
• Adjustable shelf pitch for different mould heights
• Heavy-duty construction for industrial applications
• Individual compartments for systematic storage
• Faster identification and retrieval of moulds
• Suitable for mould rooms, tool rooms, die storage and manufacturing facilities

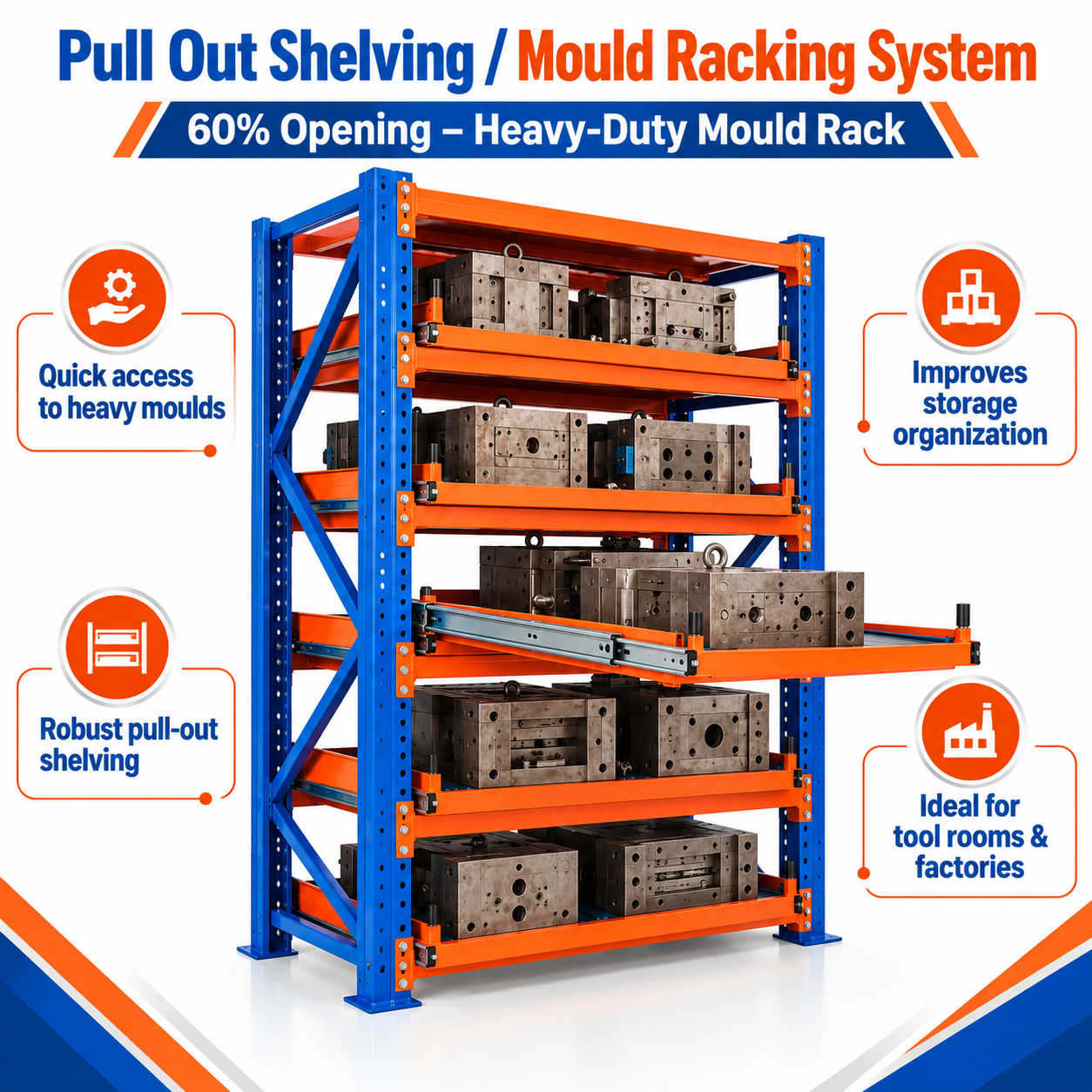

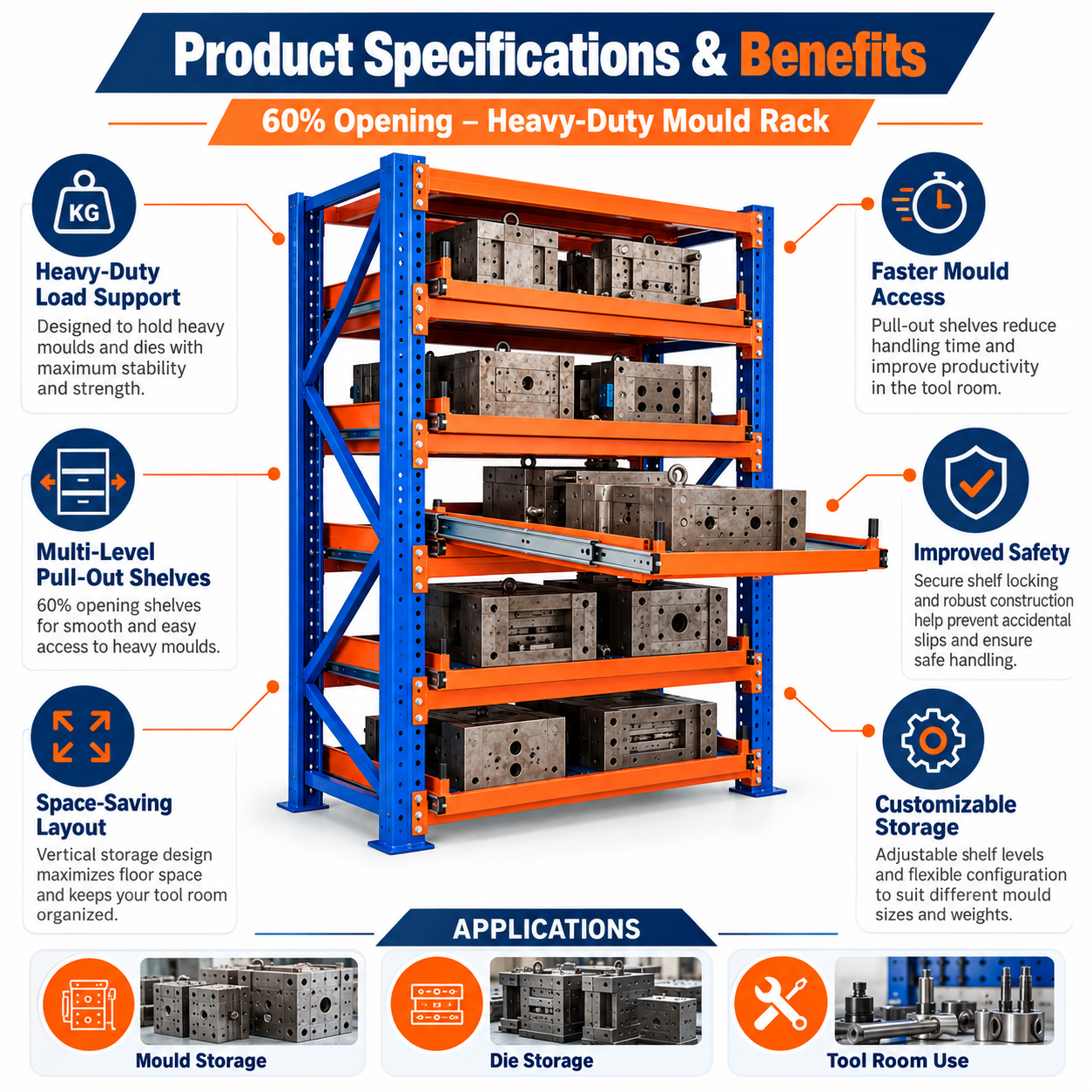

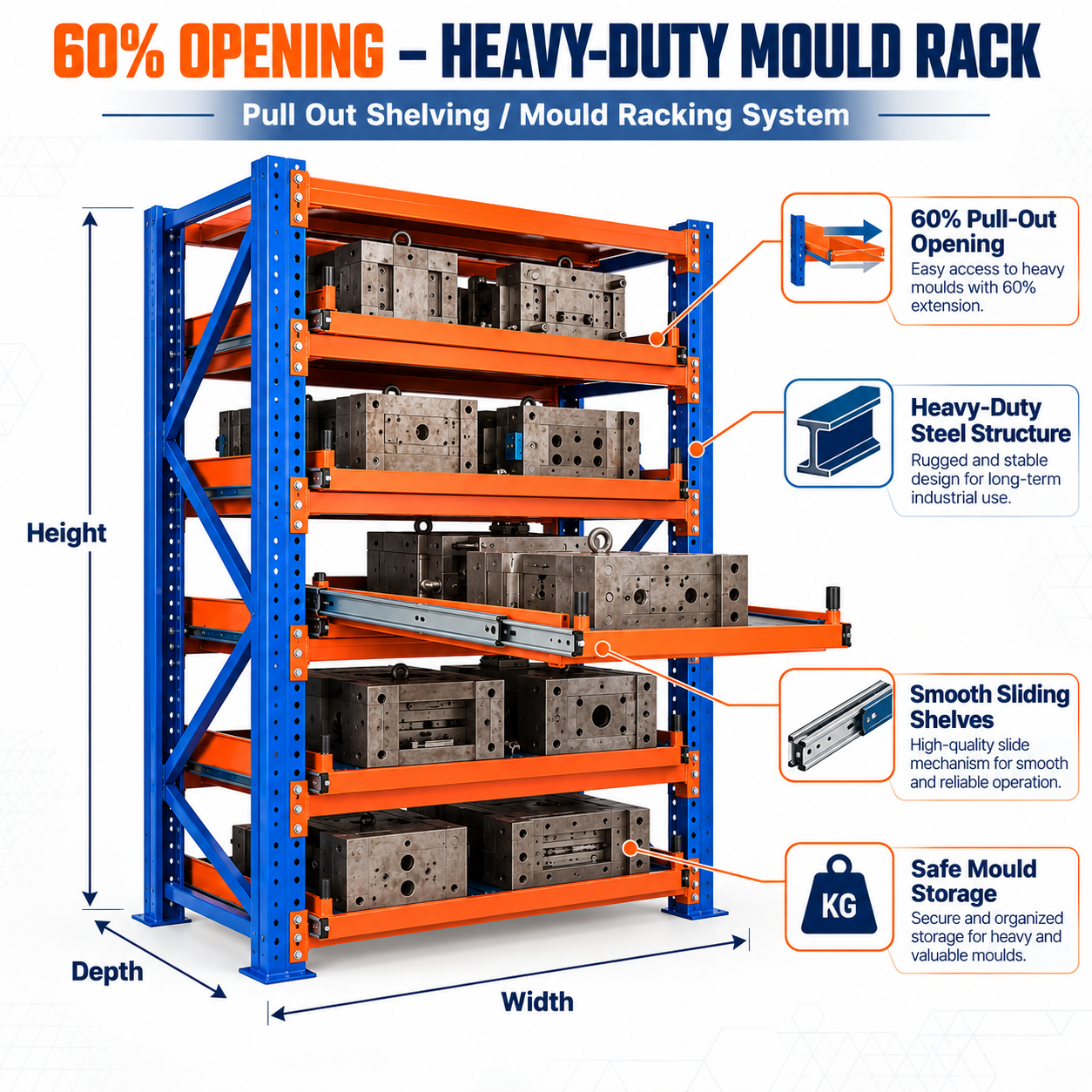

60% OPENING – HEAVY-DUTY MOULD RACK
The 60% opening configuration provides convenient access to moulds while retaining a substantial portion of the shelf within the rack. It is suitable for applications where controlled access and high- density storage are required.

Optional Accessories:
Chain Pulley Hoist – 1000 kg | Overhead Crane | Fork Lifter

The 90% opening configuration offers a wider pull-out range, providing almost unrestricted access to stored moulds. It helps reduce retrieval time and improves operator efficiency while maintaining secure and organized storage.

Optional Accessories:
Chain Pulley Hoist – 1000 kg | Overhead Crane | Fork Lifter

100% OPENING – 1500 KG HEAVY-DUTY VERSION
The 100% opening configuration delivers maximum accessibility, allowing operators to access the complete shelf with minimal obstruction. With a 1500 kg load capacity per shelf, it is ideal for storing heavy moulds and dies.

Optional Accessories:
Chain Pulley Hoist – 1500 kg | Overhead Crane | Fork Lifter

100% OPENING – 2000 KG HEAVY-DUTY VERSION
For heavier moulds and dies, the 2000 kg per shelf version provides enhanced load-bearing capability while retaining the benefits of full shelf opening and easy access.

Optional Accessories:
Chain Pulley Hoist – 2000 kg | Overhead Crane | Fork Lifter
